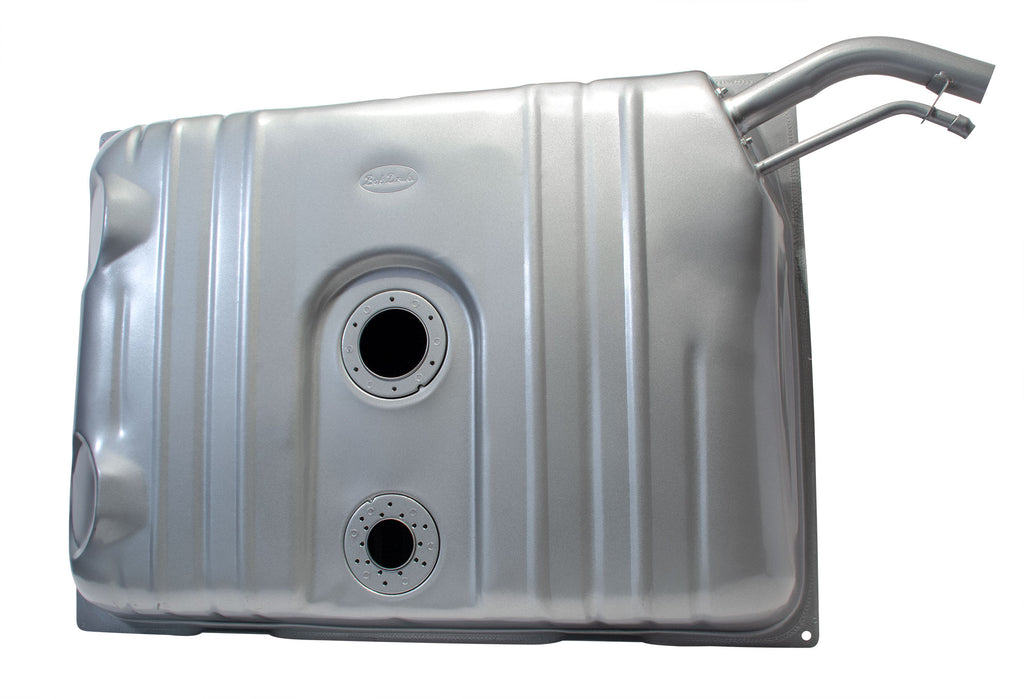

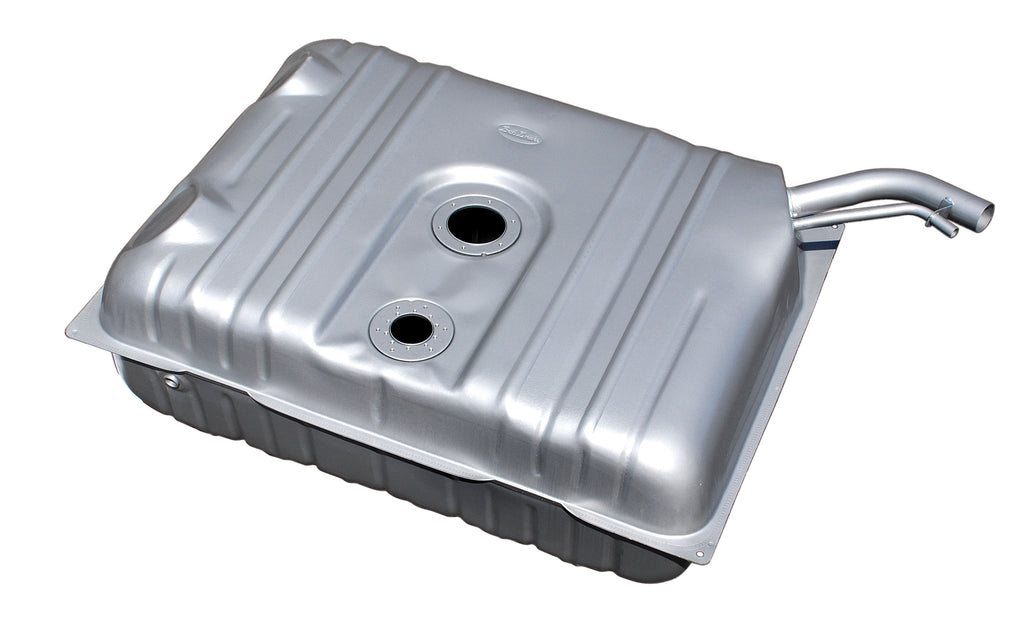

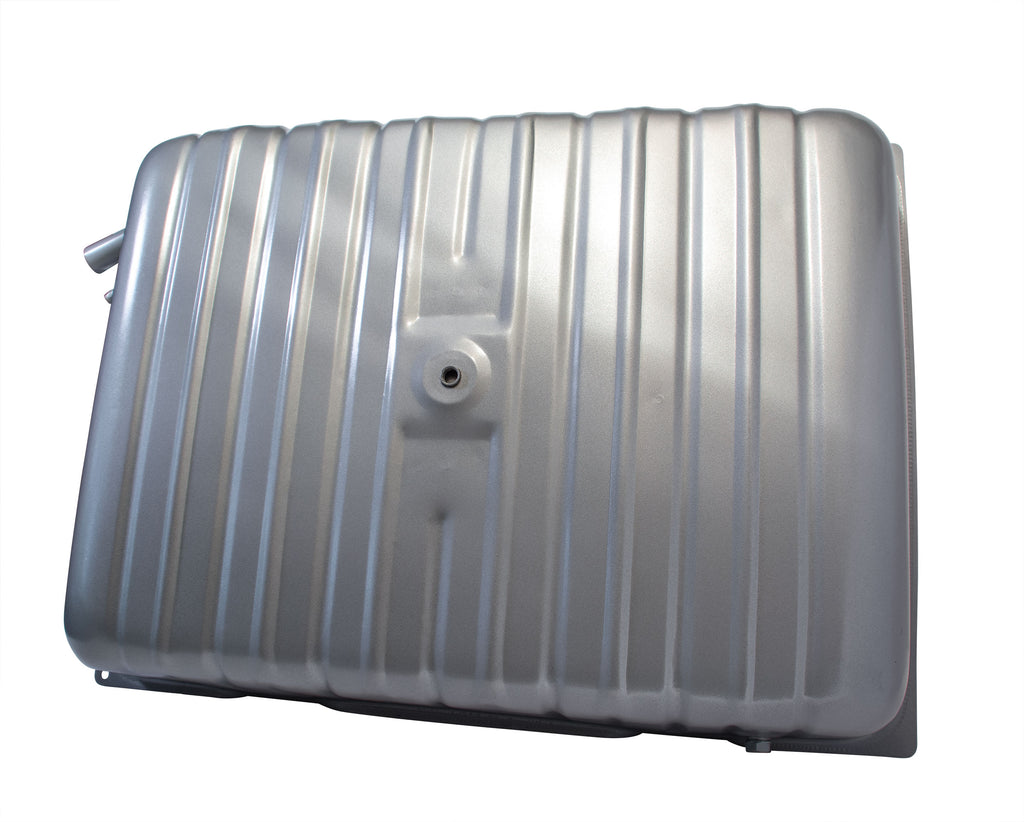

Gas Tank (Extra Capacity); 1949-52 Chevy Car
Nothing beats a Drake Tank!
Fuel
Injection or Carburetor Ready
·
Ready to serve fuel
injection or high-performance carburetor systems.
·
Fuel pickup port hole
easily accepts Drake’s own pickup unit or other common aftermarket units.
·
Running an external
pump? Simply block off the fuel pickup port with included plate and gasket, and
run your line from the 1/4 NPT outlet (stock location).
Added
Capacity
·
Enlarged from 16 to
18 gallons, Drake’s Tank allows you to skip frequent station stops and keep on
cruisn’.
·
No need to fabricate
longer straps – we include them with the Tank.
Multiple
Sending Unit Options
·
VDO, Classic
Instruments, Stewart Warner, Drake’s exclusive multi-pattern fuel sender flange
makes connections easy. Run the gauges you want without engineering your own
sender port.
Made for the
Job
·
High strength steel
and die-stamped ridges keep the Tank strong and sturdy while continuous seam
welds hold the gas where it should be – inside.
·
Specially formulated
surface treatment inhibits the start and spread of corrosion.
·

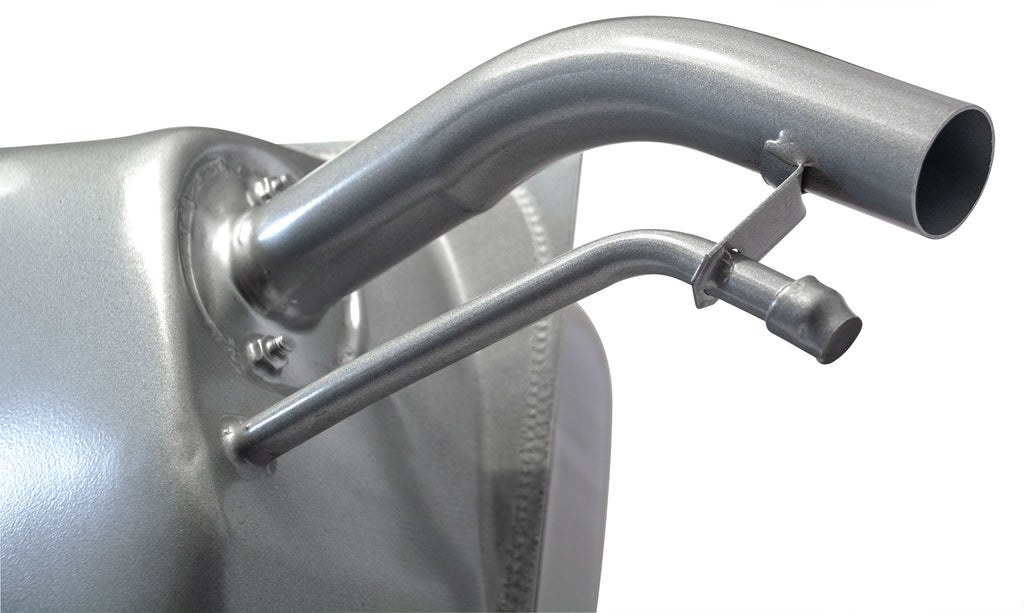

Single-Tube steel
filler neck welded to main body (unlike the competition’s tube-hose-tube
Frankenstein concoction) eliminates chance of leakage and hose degradation.
·
Pressure tested twice
before shipment.
Features
·
Internally welded reservoir
tray ensures fuel availability when you need it. No more fuel starvation when
accelerating or cornering.
·
Versatile 1/4 NPT
fuel line outlet for greater connection adaptability (over stock style compression
fit outlet) to your line of choice.
·

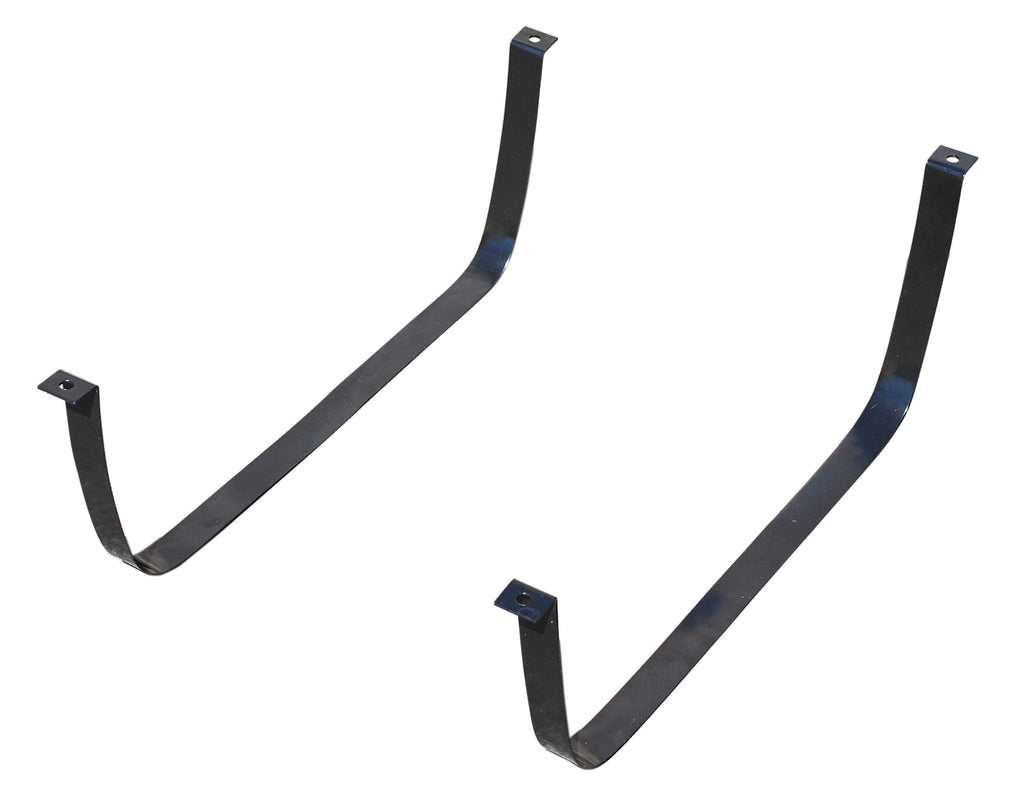

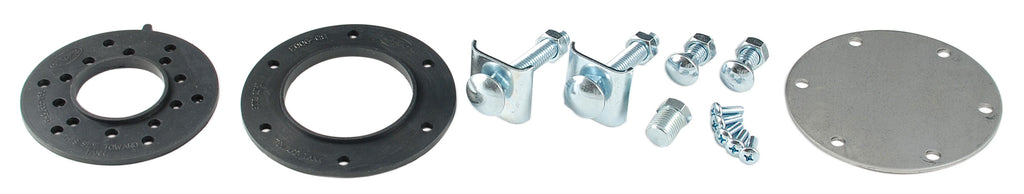

Includes extra long
steel mount straps, sending unit gasket, fuel pickup port block-off and gasket,
fuel line plug, drain plug, mounting hardware with special square reinforcement
washers.
Shipping
·
This product is
dimensionally large. Extra shipping charges applied at checkout. Excluded from
free shipping offers.
